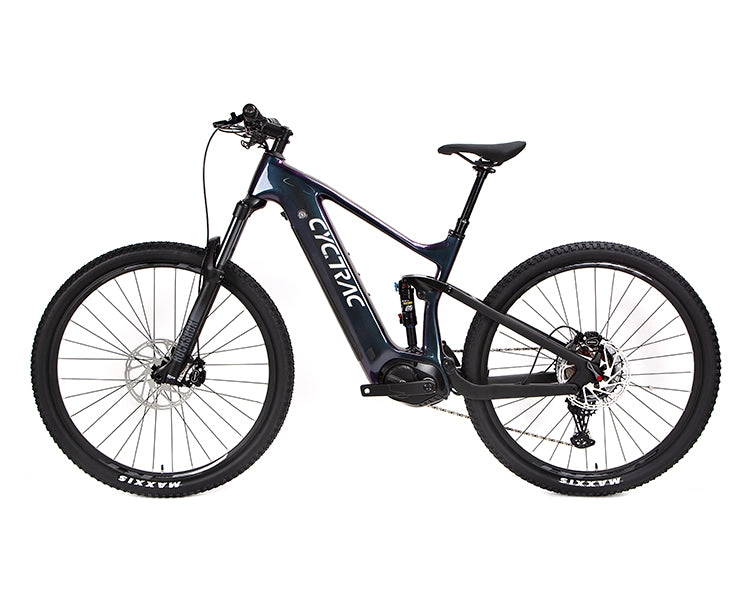

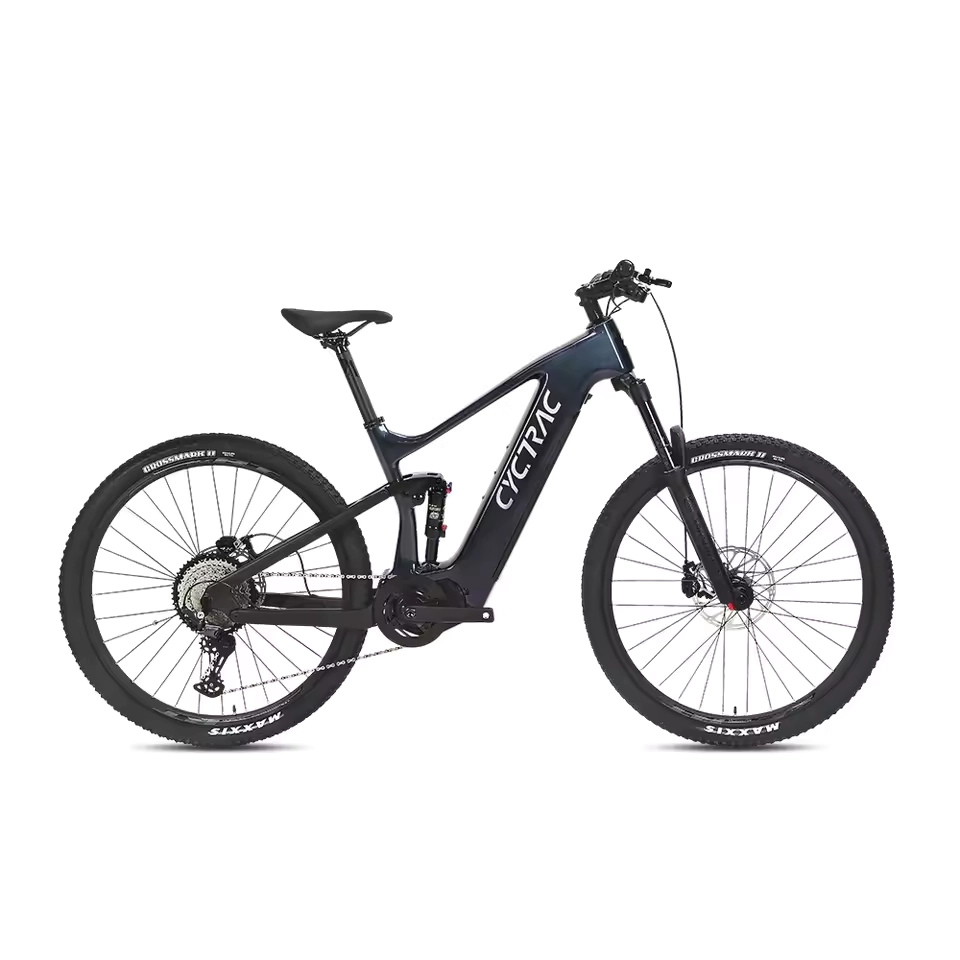

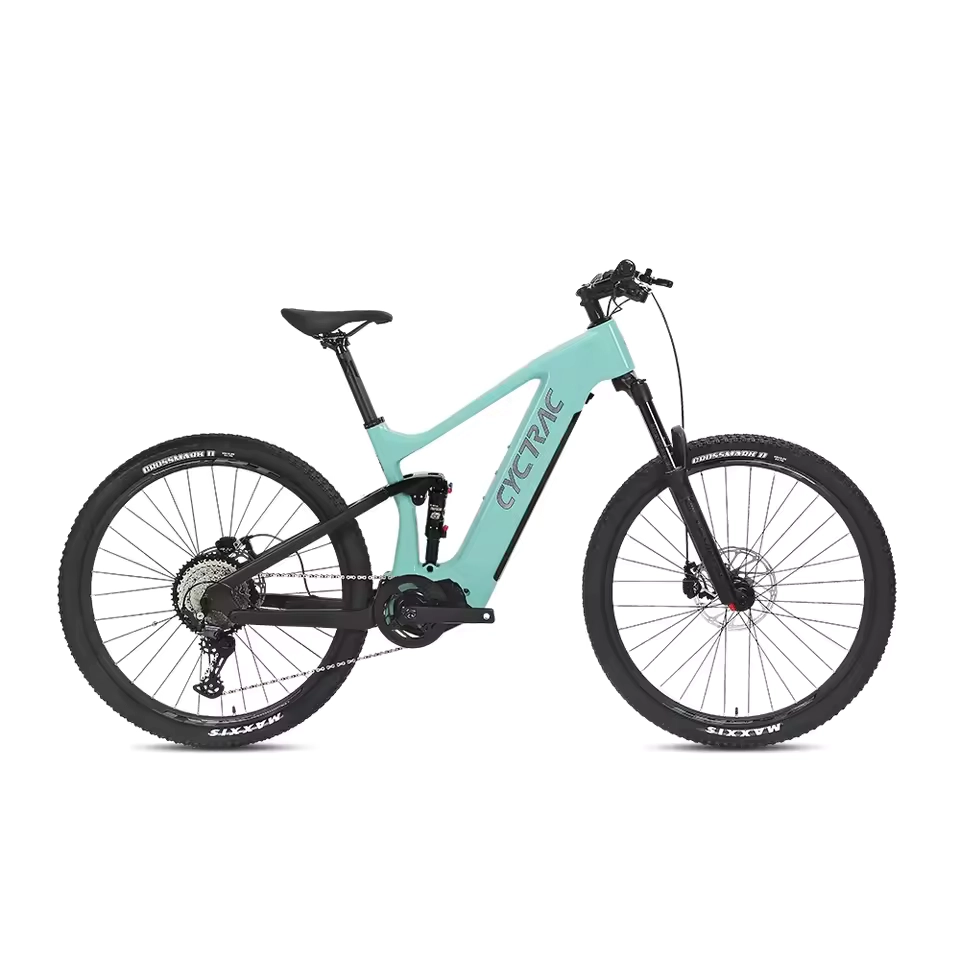

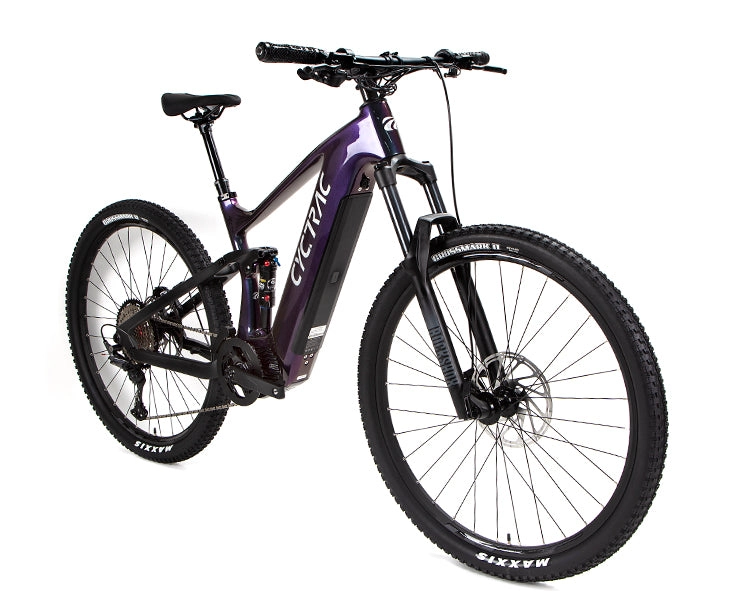

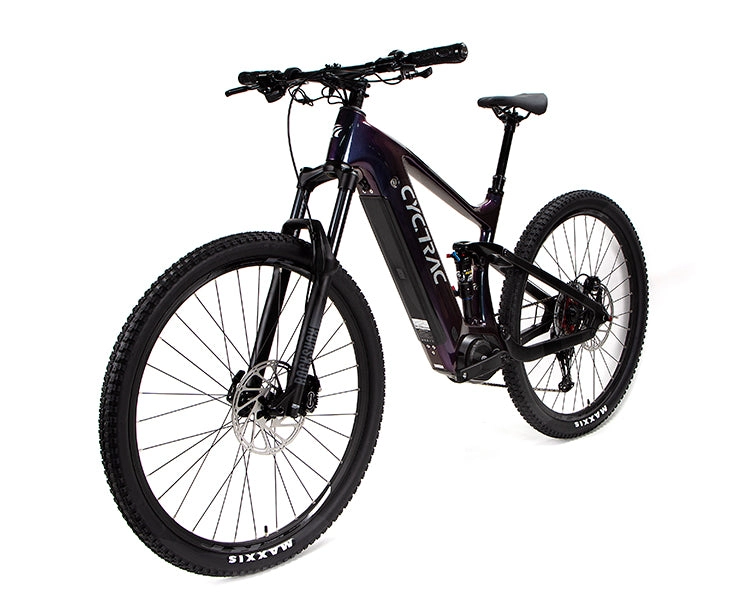

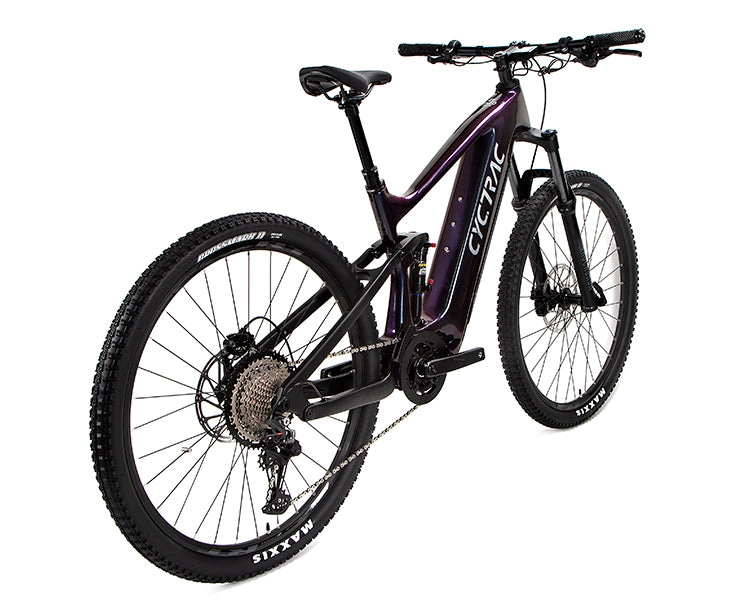

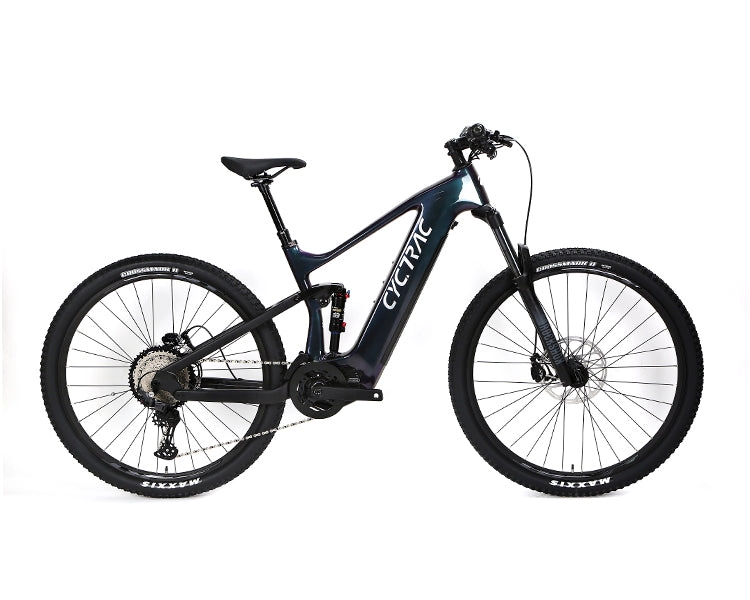

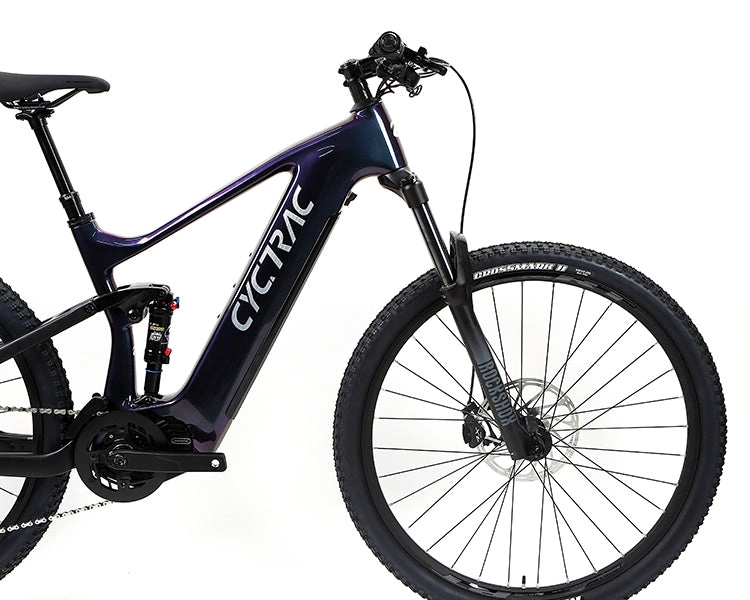

CYCTRAC EM10 - High-Performance Carbon eMTB

The CYCTRAC EM10 series is a top-tier full-suspension electric mountain bike, designed for riders seeking high performance, durability, and power on the trails. Built with a high-modulus carbon fiber frame, this bike ensures lightweight agility while maintaining exceptional strength. With multiple motor and battery configurations, the EM10 adapts to your riding style and terrain.

🚴 **1. EM10 (M510 48V250W)**

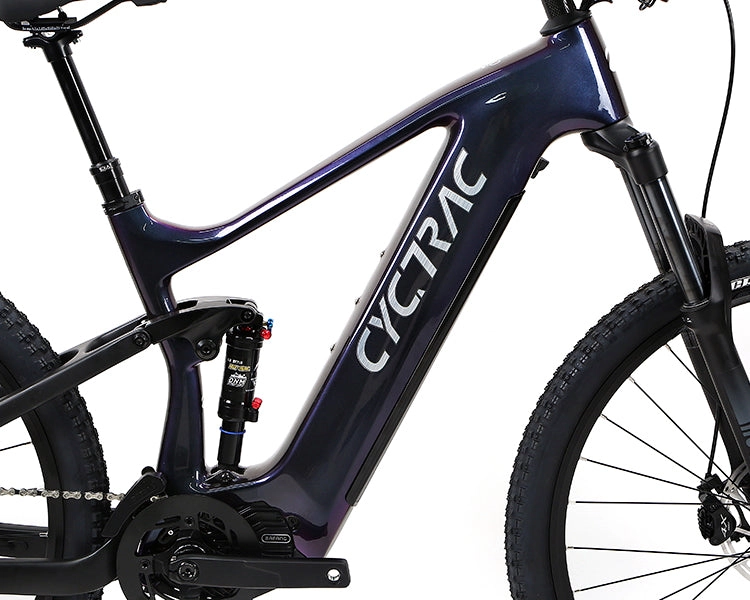

Frame:

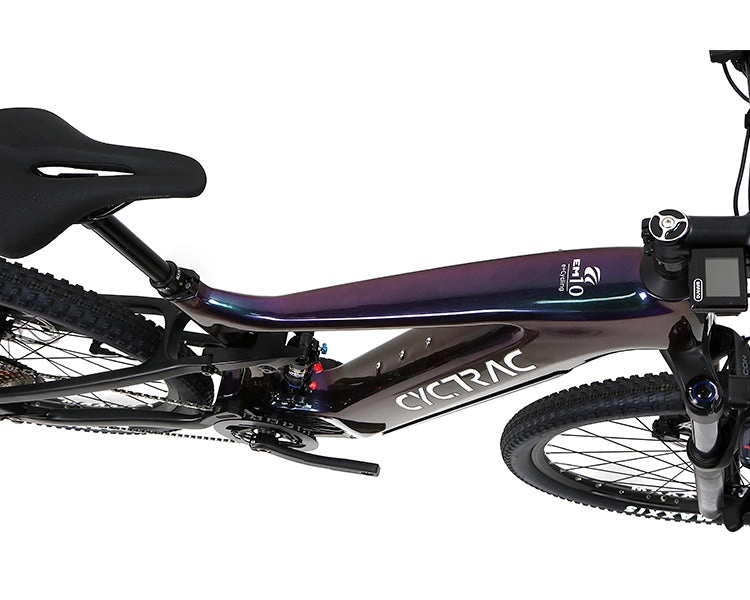

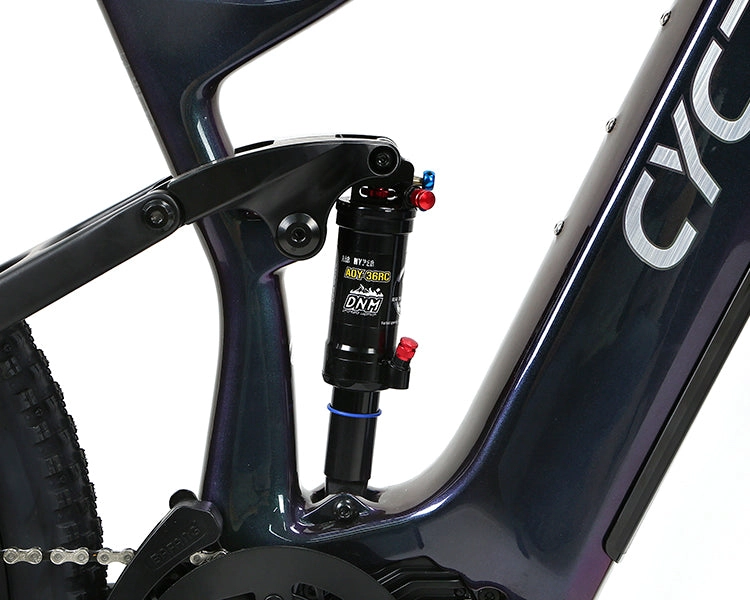

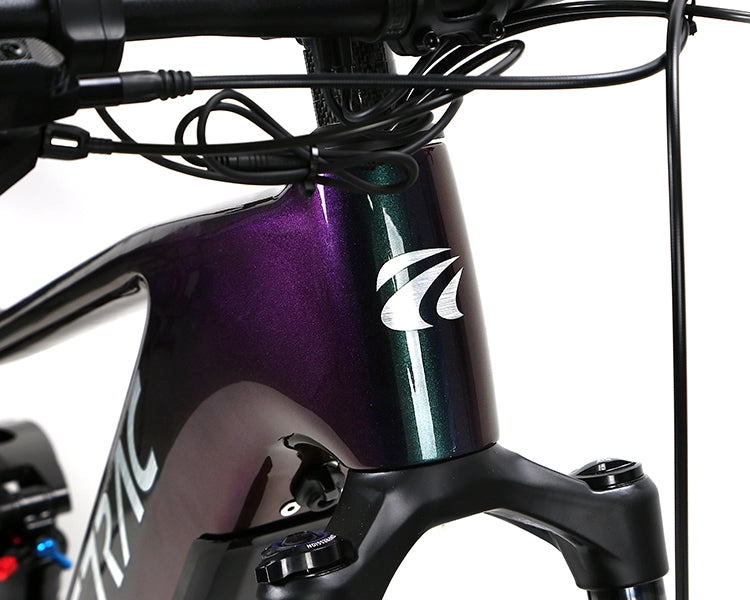

CYCTRAC-EM10, High-Modulus Carbon Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

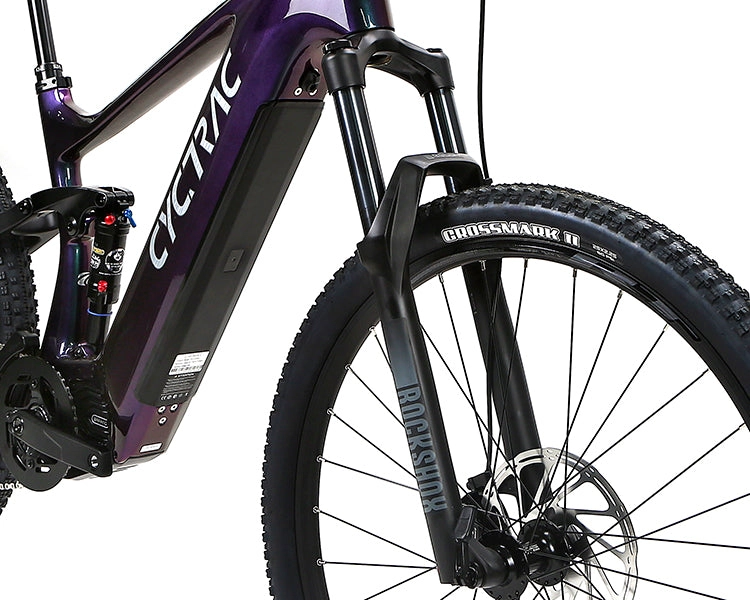

Fork:

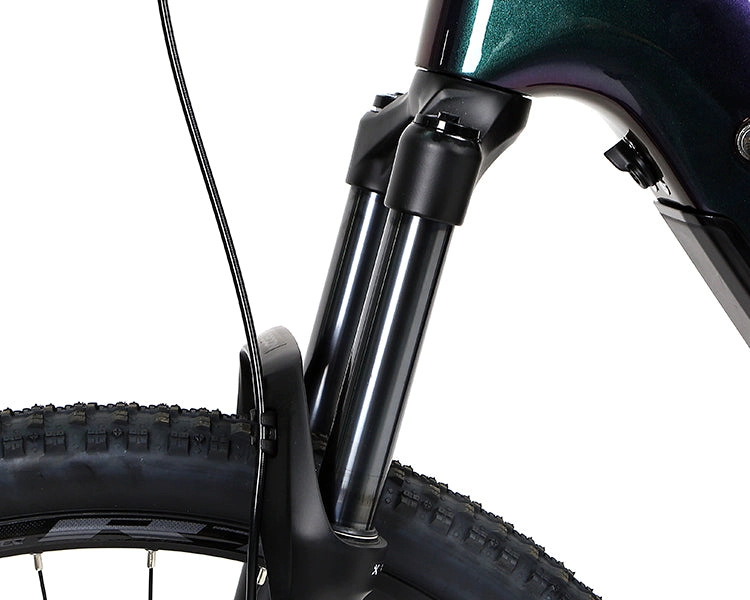

RS, Magnesium-Aluminum Alloy, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

Handlebar:

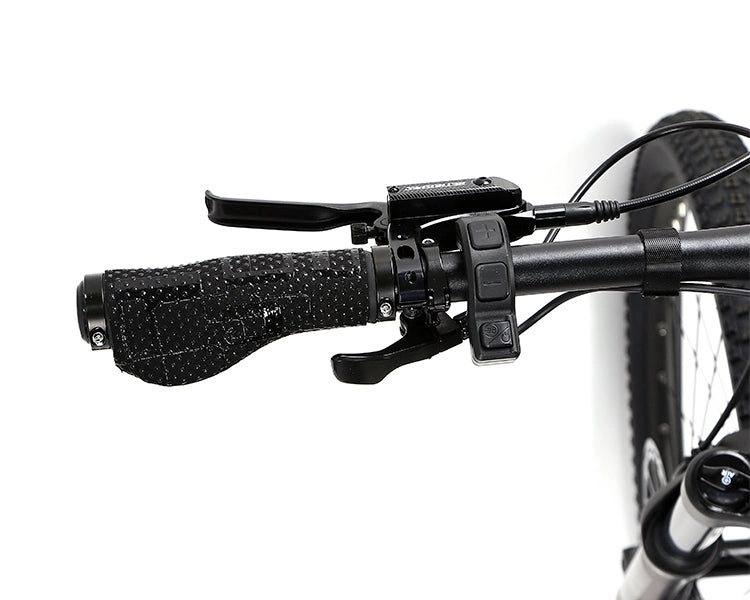

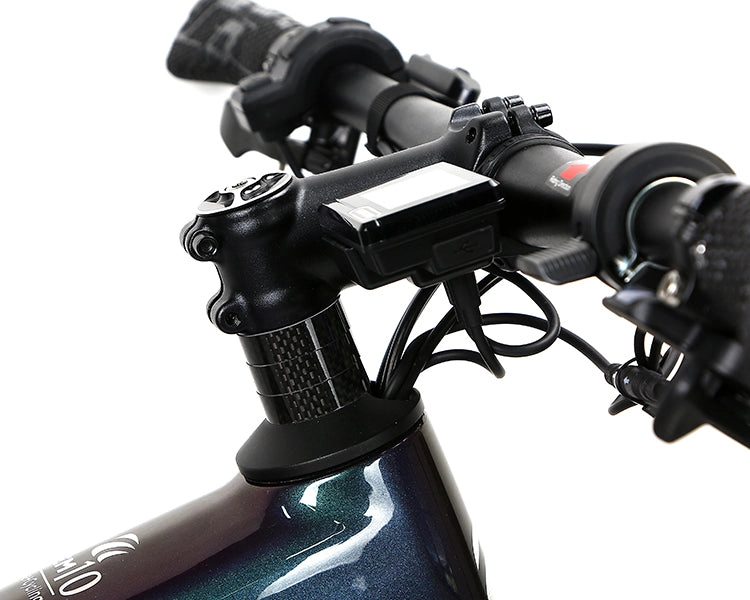

RS, Aluminum Alloy, Matte Finish, 31.8*720 mm

Groupset:

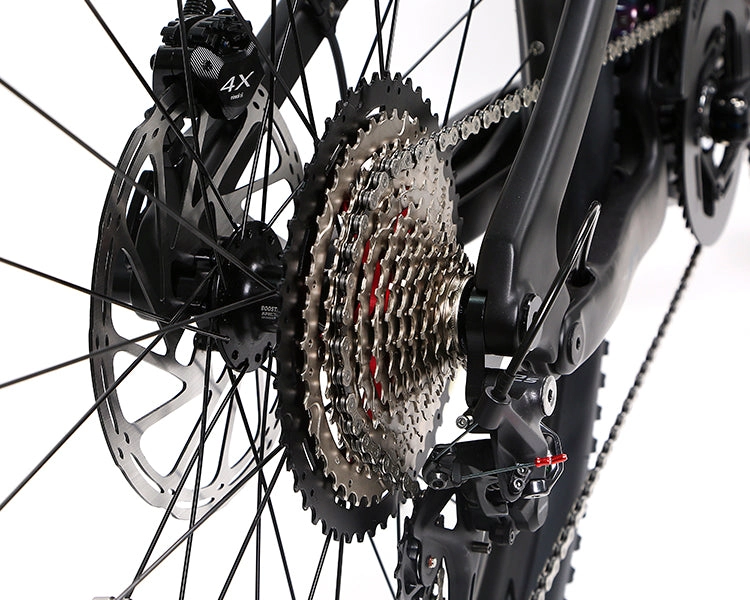

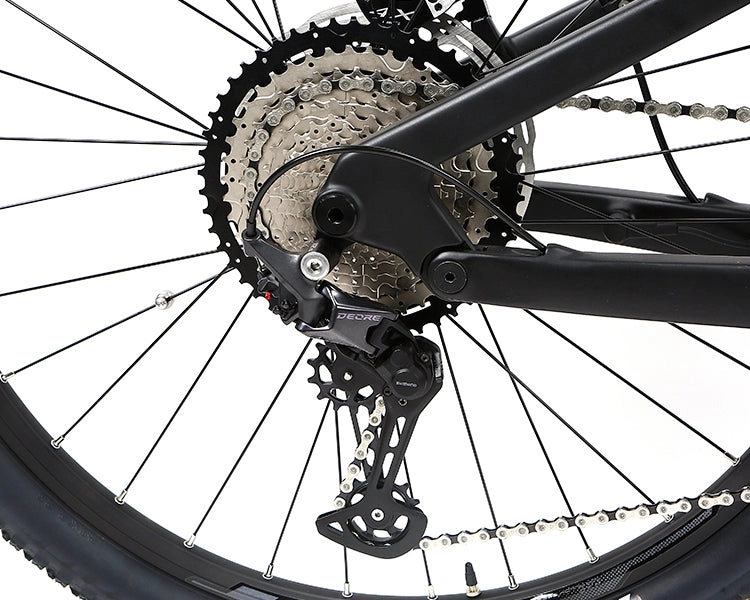

Shimano DEORE M6100-12S, Rear Derailleur, 12 Speed

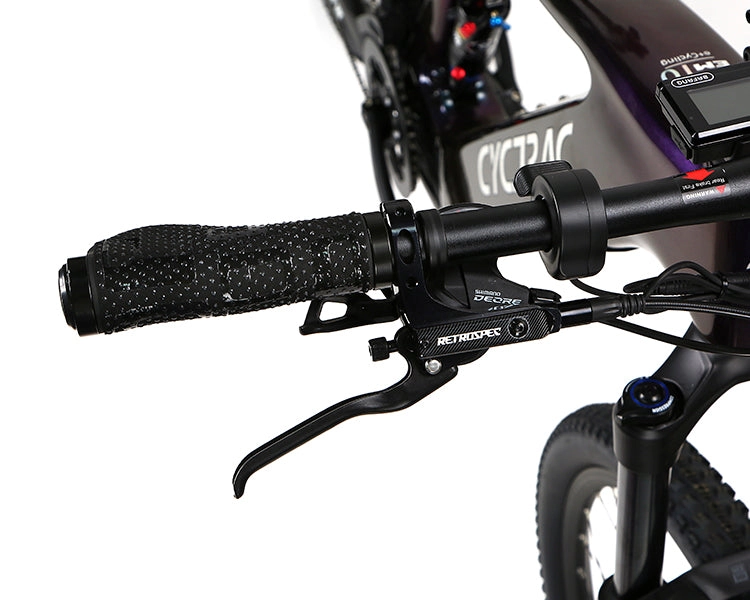

Brakes:

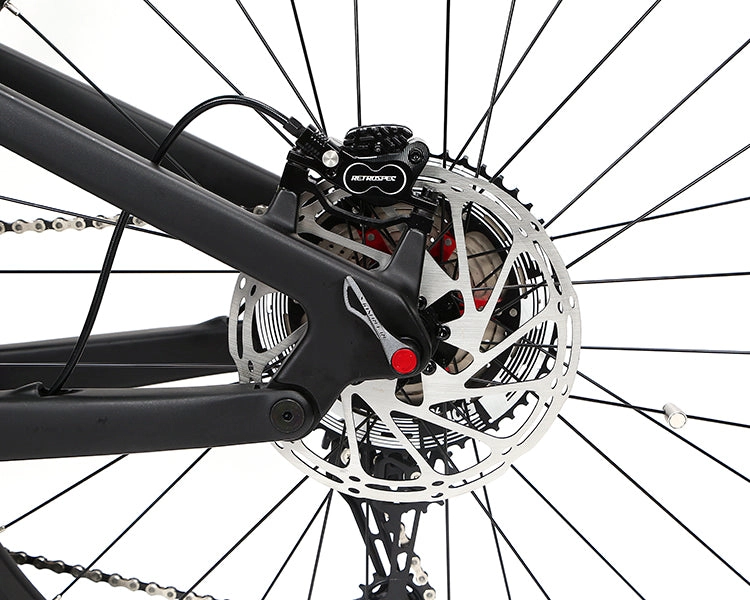

TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

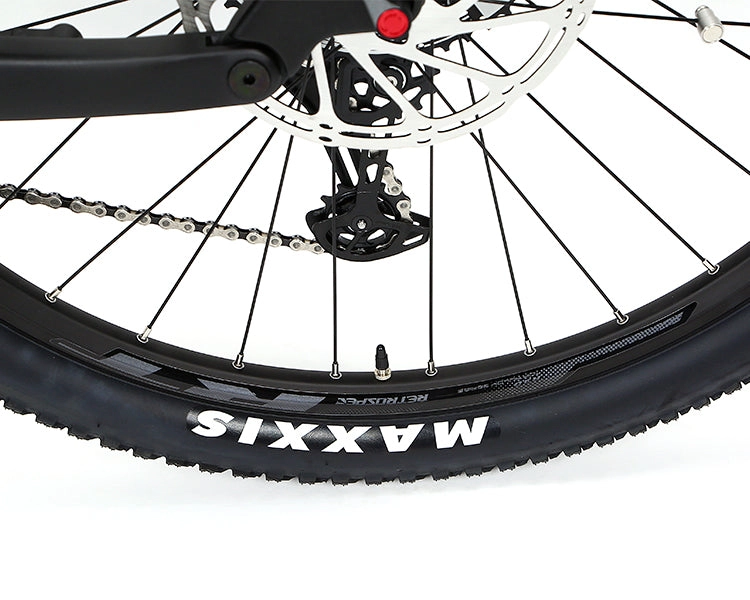

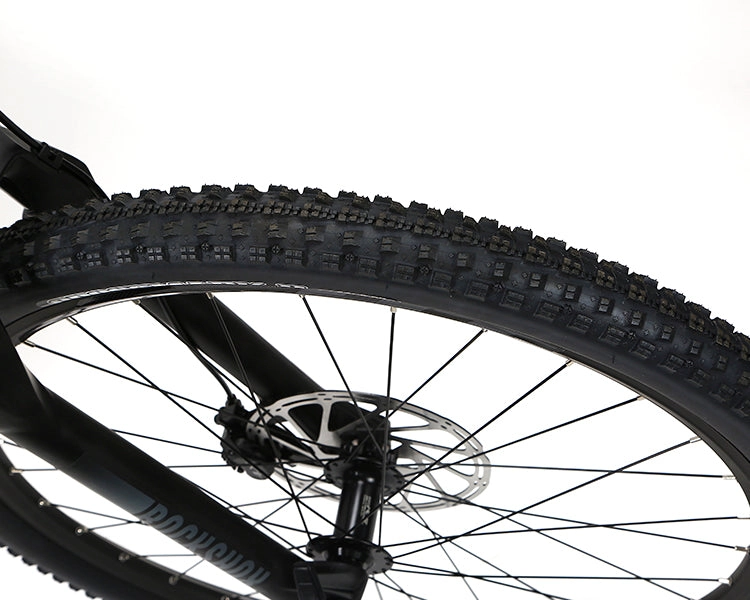

Tires:

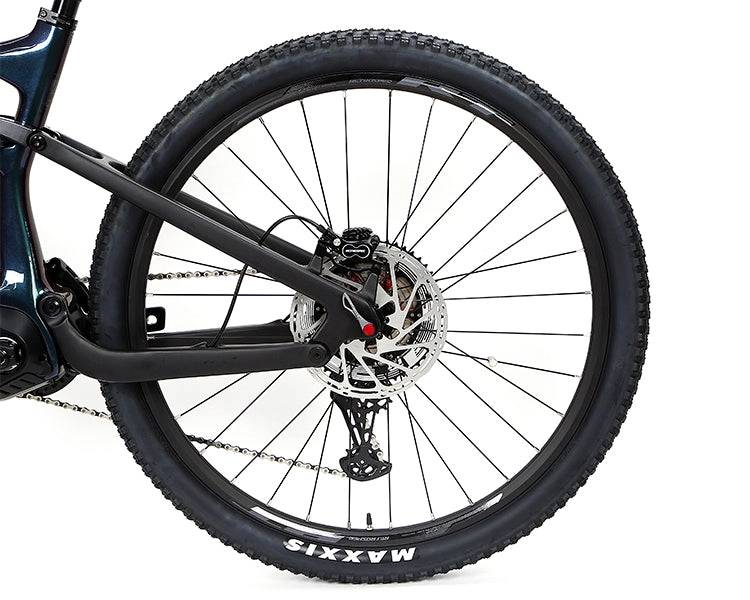

MAXXIS CROSSMARK, 29 OR 27.5 x 2.25"

Motor:

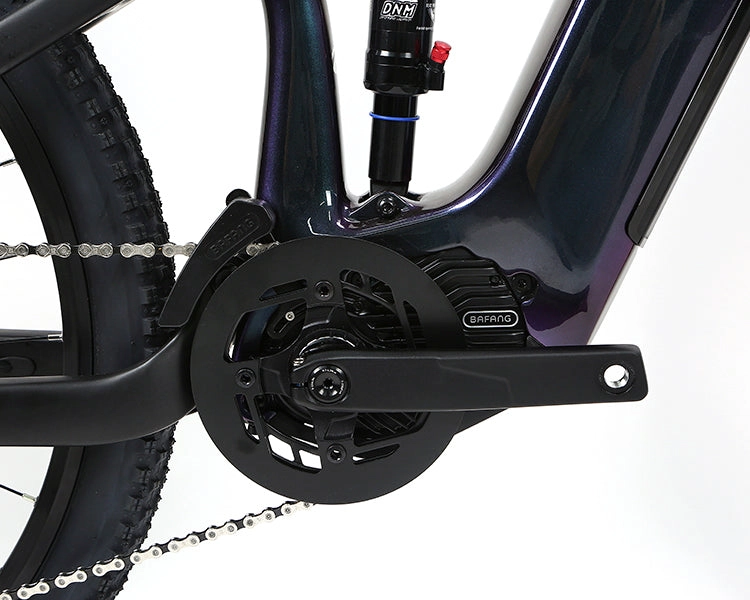

Bafang Mid Drive, M510 (36V250W)

Torque:
95 N.m

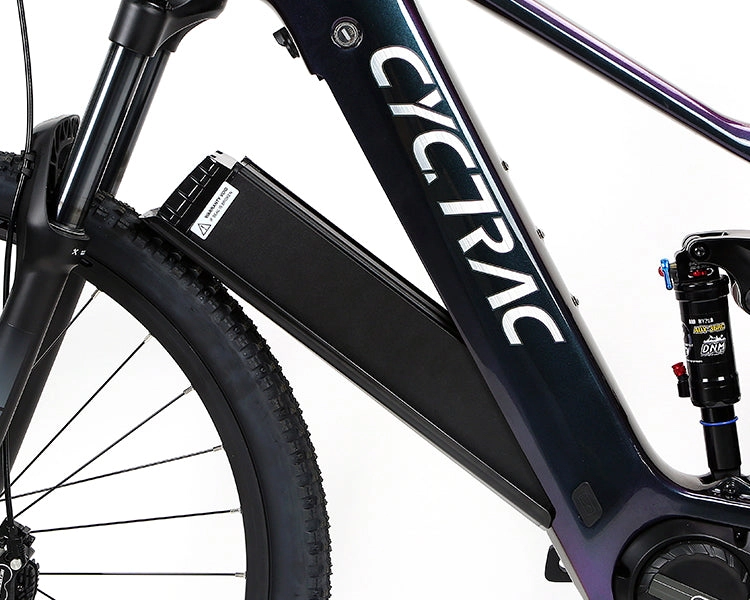

Battery:
Samsung 21700 Li-ion, 720Wh, 36V20A

Range:
120–140 KM

Weight:
23.1 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

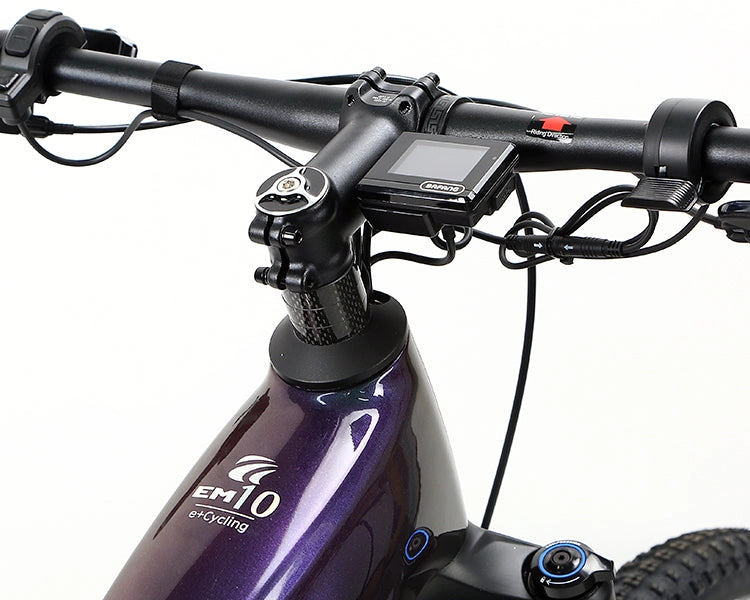

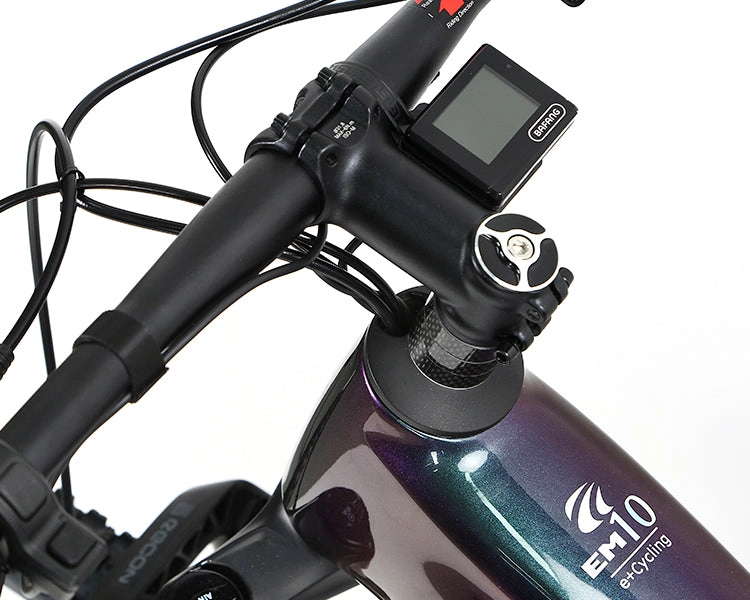

Display:

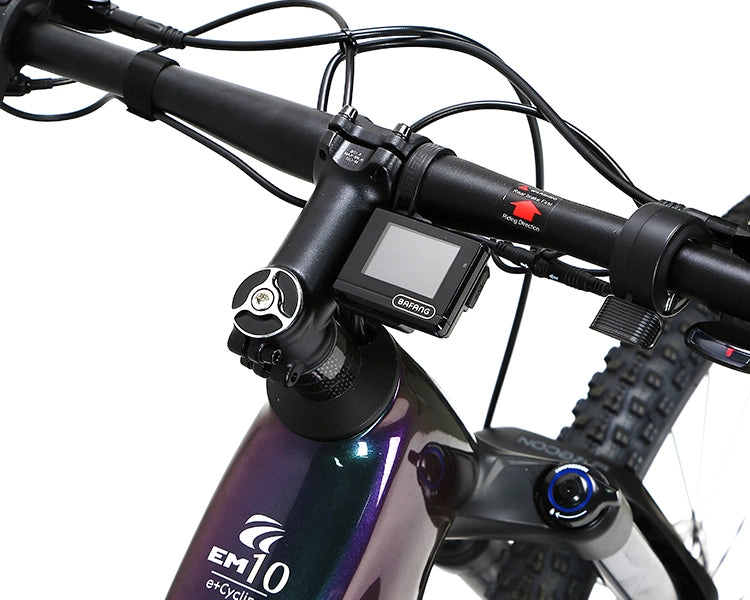

Bafang C245, LCD Digital Display

🚴 **2. EM10 (M560 48V250W)**

Frame:
CYCTRAC-EM10, High-Modulus Carbon Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

Fork:
RS, Magnesium-Aluminum Alloy, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

Handlebar:
RS, Aluminum Alloy, Matte Finish, 31.8*720 mm

Groupset:
Shimano DEORE M6100-12S, Rear Derailleur, 12 Speed

Brakes:
TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

Tires:
MAXXIS CROSSMARK, 29 OR 27.5 x 2.25"

Motor:
Bafang Mid Drive, M560 (48V500W)

Torque:
130 N.m

Battery:
Samsung 21700 Li-ion, 720Wh, 48V15A

Range:
110–130 KM

Weight:
23.5 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

Display:
Bafang C245, LCD Digital Display

🔥 **3. EM10 (M510 36V20A HIGH)**

Frame:
CYCTRAC-EM10, High-Modulus Carbon Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

Fork:

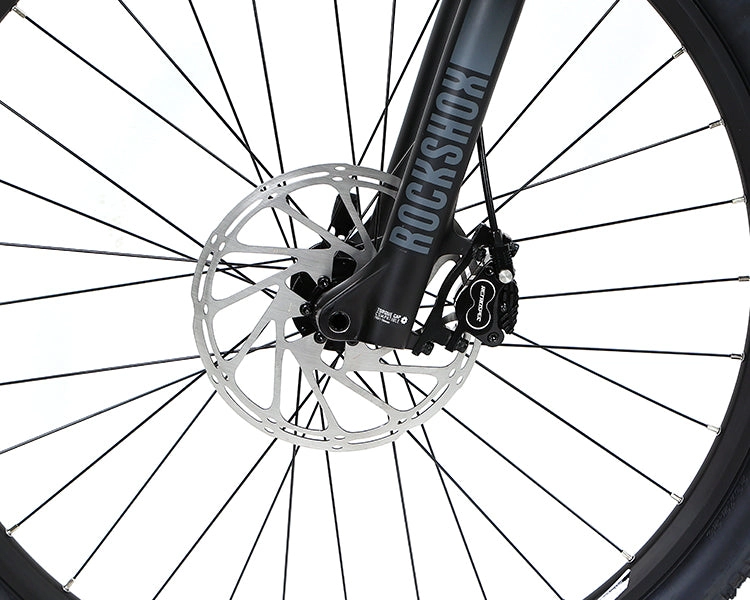

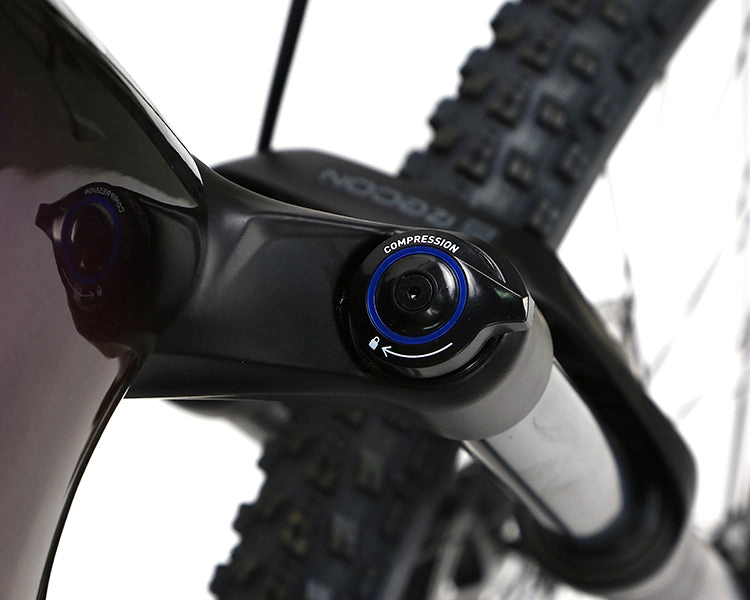

ROCKSHOX-RECON, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

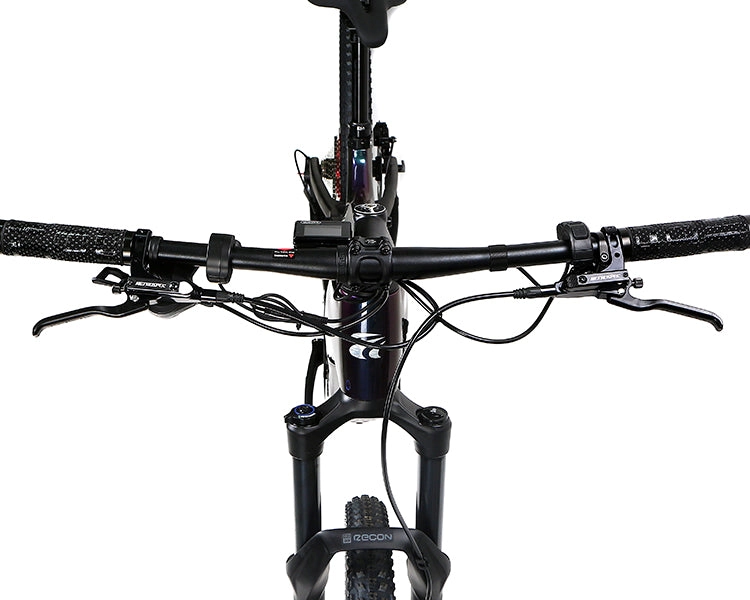

Handlebar:
KS Adjustable Lifting Handlebar, Hydraulic Remote, 31.6**395*125mm

Groupset:
Shimano DEORE M6100-12S, Rear Derailleur, 12 Speed

Brakes:
TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

Motor:
Bafang Mid Drive, M510 (36V250W)

Torque:
95 N.m

Battery:
Samsung 21700 Li-ion, 720Wh, 36V20A

Range:
120–140 KM

Weight:
23.9 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

Display:
Bafang C245, LCD Digital Display

🔥 **4. EM10 (M560 48V500W HIGH)**

Frame:
CYCTRAC-EM10, High-Modulus Carbon Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

Fork:
ROCKSHOX-RECON, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

Handlebar:
KS Adjustable Lifting Handlebar, Hydraulic Remote, 31.6**395*125mm

Groupset:
Wheeltop EDS OX-12S Wireless

Brakes:
TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

Motor:
Bafang Mid Drive, M560 (48V500W)

Torque:
130 N.m

Battery:
Samsung 21700 Li-ion, 720Wh, 48V15A

Range:
110–130 KM

Weight:
24.3 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

Display:
Bafang C245, LCD Digital Display
